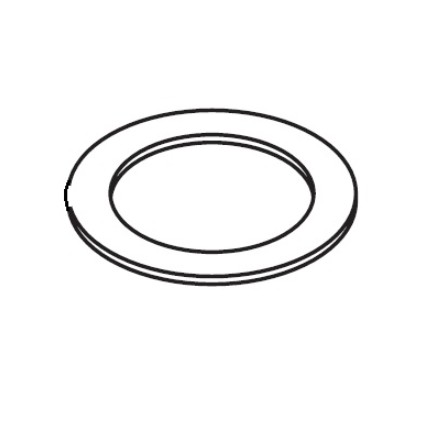

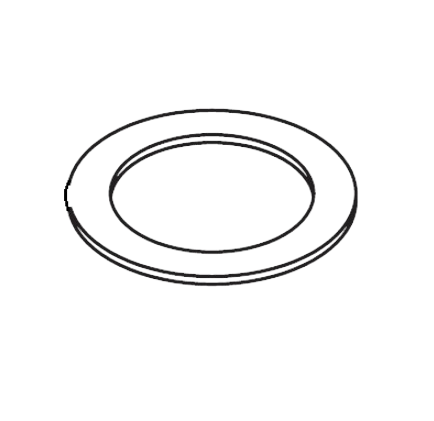

Titan 0509683 Seal Washer

Seal washer 0509683 for Advantage and SprayTech

The 0509683 seal washer is a dual-purpose component that combines the load-distributing function of a washer with the sealing function of a gasket or O-ring. It is specifically designed for use with Advantage GPX 165; SprayTech GPX 165; SprayTech GPX1600; and SprayTech LC1600 models. This washer is typically installed under the head of a bolt or screw, or under a nut, to provide a leak-proof seal at the fastened joint. It prevents fluid from escaping around the fastener, which is critical in applications where the fastener penetrates a fluid-containing housing or where a seal is needed to prevent external contamination. The washer is often made from a material like a soft metal (e.g., copper or aluminum) that deforms under compression to create a tight seal, or it may be a composite of a sealing element bonded to a metal washer. Over time, seal washers can become crushed, lose their sealing ability, or corrode. A worn or damaged seal washer will allow fluid to leak past the fastener, leading to loss of pressure, mess, and potential damage to surrounding components. Symptoms of a faulty seal washer include visible fluid leakage at the fastener, the fastener loosening, or signs of corrosion around the joint. Replacing a worn or damaged seal washer with this genuine part restores a positive, leak-proof seal at the fastened connection. This simple component is essential for maintaining the integrity of fluid systems and preventing leaks. When replacing, ensure the washer is correctly positioned and that the fastener is tightened to the correct torque.
