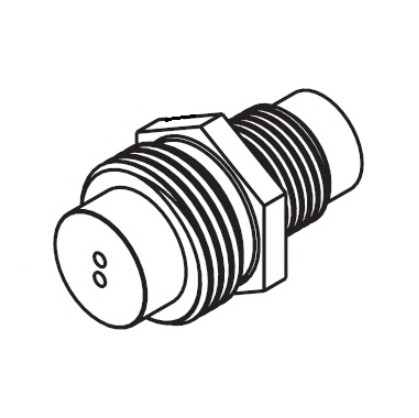

Titan part 0296404 is a diffuser used to control spray pattern and material flow on compatible Airless spray guns. When the original diffuser becomes worn, clogged, or damaged, it can cause uneven spray patterns, poor atomization, and inconsistent finish quality. This diffuser restores proper spray characteristics for professional results.
Spray Pattern Diffuser for Airless G10 and LX-65 Spray Guns
The Titan part 0296404 Diffuser is a precision component designed to control material flow and spray pattern on compatible Airless G10 TR2, Airless G10, and Airless LX-65 spray guns. This diffuser works in conjunction with the spray tip to create the optimal fan pattern and material atomization for professional finishing results.
A worn or damaged diffuser can lead to uneven spray patterns, tails in the fan, poor material atomization, and inconsistent coverage. Replacing with this genuine component restores proper spray characteristics, ensuring smooth, even finishes in professional painting applications.
Installation Note: Ensure the diffuser is properly seated and oriented according to the manufacturer's instructions. Clean the mounting area before installation to prevent debris from affecting spray performance.
What it does and when to replace it
What the diffuser does
Pattern control
Shapes material into consistent fan pattern
Atomization
Helps break material into fine particles
Flow regulation
Controls material flow to spray tip
Finish quality
Ensures smooth, even coverage
When replacement is recommended
Uneven pattern
Spray fan has tails, streaks, or inconsistent shape
Poor atomization
Material sprays in droplets rather than fine mist
Visible wear
Diffuser shows erosion or damage
Clogging issues
Frequent clogging that cleaning doesn't resolve
Compatibility
Titan part 0296404 is designed for use with the following Airless spray gun models. Always verify your specific model before ordering.
Model
Component
Airless G10 TR2
Diffuser
Airless G10
Diffuser
Airless LX-65 Spray Gun
Diffuser
Related parts commonly serviced together
When replacing a diffuser, these related spray gun components are often inspected or replaced to ensure complete system performance.
Spray tip
Works with diffuser to create spray pattern; inspect for wear.
Seal kit
O-rings and seals that prevent leaks in the gun.
Fluid needle
Controls material flow; inspect for wear or damage.
Frequently Asked Questions
The diffuser is a critical component that works with the spray tip to shape the material into a consistent fan pattern. It helps regulate material flow and contributes to proper atomization by directing the material through precision channels before it reaches the tip orifice. A properly functioning diffuser ensures even distribution across the spray fan, eliminating tails and streaks for professional finish quality.
Signs that your diffuser needs replacement include: uneven spray pattern with heavy edges or tails, poor atomization resulting in orange peel texture, visible wear or erosion of the diffuser surface, frequent clogging that cleaning doesn't resolve, and a noticeable drop in finish quality. Regular inspection during gun cleaning will help identify wear before it affects your work.
The 0296404 diffuser is compatible with Airless G10 TR2 and standard Airless G10 models, as well as the Airless LX-65 Spray Gun. While these models share similar diffuser designs, always verify compatibility with your specific gun's parts diagram. If your G10 model has a different suffix or configuration, consult the documentation or an authorized dealer to confirm fitment.
Yes, cleaning should always be attempted first. Soak the diffuser in appropriate solvent for your material type, then use soft brushes and compressed air to clear passages. Never use metal tools that could damage precision surfaces. However, if cleaning doesn't restore proper spray pattern, if there's visible wear or erosion, or if the diffuser has been cleaned many times, replacement is recommended. A worn diffuser will compromise finish quality even when clean.
