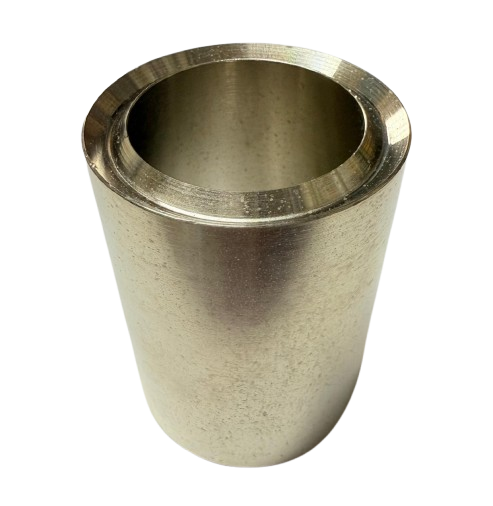

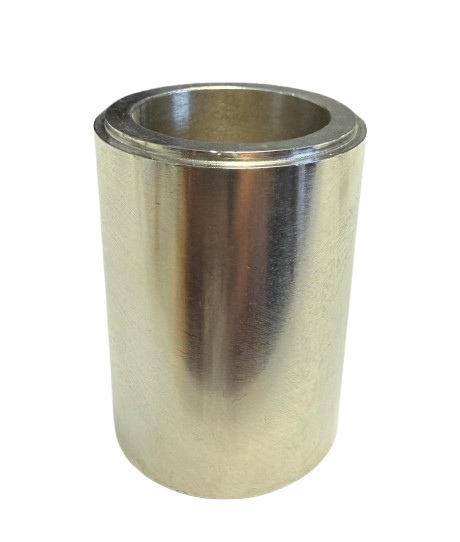

Titan 0294522 Lower Ring Support
OEM SprayTech Fluid Section Component
Titan 0294522 Lower Ring Support is a genuine OEM structural component for the SprayTech Airless EP2510 fluid section. It provides a rigid base for the V-ring seal stack, ensuring proper alignment and compression around the piston rod.
Compatibility
When rebuilding the fluid section, always inspect the lower ring support for flatness, cracks, or wear. Replace it whenever the V-ring or throat packings are replaced to ensure proper seal compression and alignment.
SprayTech Fluid Section Component
Titan 0294522 Lower Ring Support for SprayTech Airless EP2510
Titan 0294522 is a precision lower ring support for the fluid section of the SprayTech Airless EP2510 airless paint sprayer. It serves as the base support for the V-ring seal stack, ensuring correct alignment and compression of the seals around the reciprocating piston rod. Over time, repeated pressure cycling, chemical exposure, or improper disassembly can cause the lower ring support to become deformed, cracked, or corroded. A compromised support can lead to misalignment of the V-ring, resulting in premature seal wear, fluid leakage, and pressure instability. The part is also listed for the Wagner EP2800 platform, confirming its use across related sprayer models.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine OEM lower ring support for the SprayTech EP2510. Provides a rigid base for the V-ring seal stack. |
| Function | Seal alignment (provides a flat, rigid base for the V-ring stack); compression control (helps maintain correct compression on the seals); structural integrity (prevents distortion of the seal assembly under high pressure). |
| Compatible Models | SprayTech Airless EP2510; Wagner EP2800. Verify fitment with your machine's parts diagram, as revision changes may affect component compatibility. |
| OEM Part Number | 0294522 Lower Ring Support. |
| Replacement Indicators | Visible damage (cracks, warping, or corrosion); recurring seal leaks (new V-rings leak prematurely); piston rod wear (uneven wear suggests misalignment); during fluid section rebuild (best practice to replace). |
| Related Parts Commonly Serviced Together | V-ring seal (0294521) (sits directly on the lower ring support); throat packings and seals (replace as a set); piston rod (inspect for wear or scoring). |
| Why Genuine OEM | Correct dimensions and flatness ensure proper seal alignment and compression. Using the specified support prevents V-ring misalignment and premature seal failure. |
Service guidance: When rebuilding the fluid section, always inspect the lower ring support for flatness, cracks, or wear. Replace it whenever the V-ring or throat packings are replaced to ensure proper seal compression and alignment. It is highly recommended to replace both the support and V-ring simultaneously, as the support and V-ring work together as a sealing system. Installing a new V-ring on an old, worn support can result in poor sealing and a shortened lifespan for the new seal. Always relieve system pressure and disconnect power before servicing.
