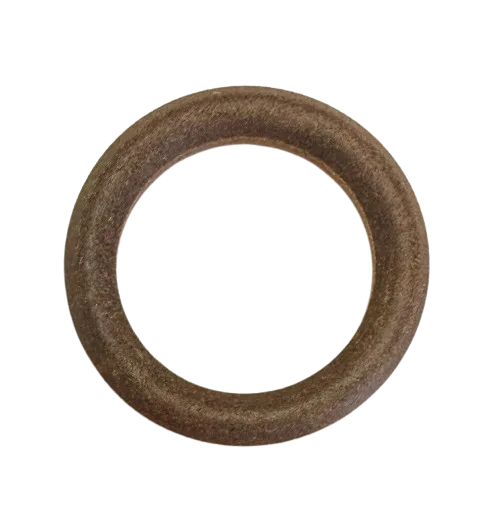

Titan 0294520 Lower Leather V-ring
OEM SprayTECH Fluid Section Packing
Titan 0294520 Lower Leather V-ring is a genuine OEM lower packing used in the fluid section of the SprayTech EP2510 airless sprayer, providing a dynamic seal around the piston to prevent fluid leakage and maintain consistent pressure.
Compatibility Table
A worn or hardened leather V-ring causes fluid blow-by, pressure loss, and reduced output. Replacement restores a tight seal and consistent spray performance.
SprayTECH Fluid Section Lower Packing
Titan 0294520 Lower Leather V-ring for EP2510 Sprayers
Titan 0294520 is the OEM lower leather V-ring packing specified for the fluid section of the SprayTech EP2510 airless paint sprayer. It functions as a dynamic seal that rides on the piston, preventing fluid from leaking past during the high-pressure stroke and working with the upper V-ring to maintain pump efficiency.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Genuine OEM lower leather V-ring packing used in the fluid section of the SprayTech EP2510 airless sprayer. |
| Function | Creates a dynamic seal against the piston to prevent fluid leakage during the pressure stroke, helps maintain consistent operating pressure, and works with the upper V-ring to keep the piston centered in the cylinder. |
| Replacement Triggers | Pressure loss or surging, fluid leakage from the packing nut or weep hole, reduced output, or visible wear, cracking, or hardening of the leather during inspection. |
| Industrial Applications | Professional painting, architectural coatings, and other applications requiring reliable fluid sealing in the pump. |
| Compatible SprayTECH Machines | EP2510. The official SprayTECH EP2510 owner's manual describes the lower packings and instructs soaking new leather packings in linseed oil for 5 minutes before installation [citation:6]. Parts databases confirm part 294520 as the lower leather V-packing for the EP2510 [citation:3]. Verify fitment against your specific machine's parts diagram. |
| OEM Part Number | 0294520 Lower Leather V-ring (also listed as 294520). |
| Related Parts Commonly Serviced Together | Upper V-ring 0294521 (replace both upper and lower V-rings as a matched set), piston 0294519 (inspect for scoring), and cylinder 0294517 (bore must be in good condition for effective sealing). |
| Common Problems Solved | Fluid blow-by past the piston, pressure loss or surging, paint leaking from the packing area, and reduced pump output. |
| Target Users / Markets | Painting contractors, maintenance crews, rental fleet operators, and repair shops servicing SprayTECH EP-series sprayers. |
| OEM and Brand Information | Genuine SprayTECH replacement component. The official EP2510 manual documents the fluid section packing replacement procedure including leather packing preparation [citation:6]. |
| Commercial Benefits | Restores a tight seal and consistent spray performance, preventing fluid waste and extending the service life of the piston and cylinder. |
The 0294520 Lower Leather V-ring is installed in the lower packing stack of the fluid section. The official SprayTECH EP2510 owner's manual instructs soaking new leather packings in linseed oil for 5 minutes before installation, and warns not to over-soak [citation:6]. When servicing the fluid section, always replace both the upper and lower V-rings as a set. Inspect the piston for scoring or wear, and clean the cylinder bore thoroughly. Lubricate the new V-rings with compatible packing oil before installation to ensure proper seating and long life.
Frequently Asked Questions
Quick answers for confirming fitment, function, and replacement timing.
