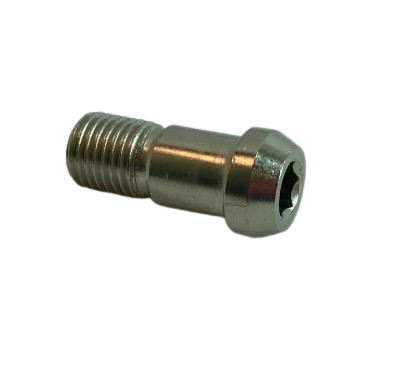

SprayTech part 0277509 is a Fluid Tube Fitting designed for SprayTech HVLP Maxum II spray guns. This precision fitting connects the fluid tube to the gun body, ensuring a leak‑free path for paint delivery. Replacing a worn, cracked, or damaged fluid tube fitting restores proper fluid flow and prevents air ingestion that can cause spitting and inconsistent spray patterns.
| Part Number | 0277509 |
|---|---|
| Part Description | Fluid Tube Fitting |
| Brand | SprayTech |
| Fits | HVLP Maxum II |
| Condition | New |
The SprayTech 0277509 Fluid Tube Fitting is a precision‑machined connector used in HVLP Maxum II spray guns to join the fluid pickup tube to the gun body. It creates a secure, leak‑tight seal that ensures consistent paint delivery from the cup to the nozzle.
This fitting is engineered to withstand the repeated connection cycles and solvent exposure common in professional finishing environments. A properly seated fluid tube fitting prevents air from entering the fluid stream, which can cause spitting, sputtering, and uneven spray patterns. Over time, fittings can become worn, cracked, or have damaged threads, leading to leaks and performance issues. Replacing a faulty fitting restores reliable fluid flow and ensures a smooth, professional finish.
| Fluid connection | Connects the fluid pickup tube to the spray gun body |
|---|---|
| Leak prevention | Creates a tight seal to prevent paint leaks and air ingestion |
| Flow integrity | Maintains consistent fluid path for smooth paint delivery |
| Fluid leaks | Paint seeping from the fitting area |
|---|---|
| Air bubbles in fluid | Air ingestion causing spitting or sputtering |
| Cracked / damaged | Visible cracks or deformation in the fitting |
| Worn threads | Threads stripped or damaged, preventing secure connection |
SprayTech part 0277509 is compatible with the following SprayTech HVLP spray gun model. Always confirm fitment using the correct parts diagram for your exact model and revision.
| SprayTech Model | Component |
|---|---|
| SprayTech HVLP Maxum II | Fluid Tube Fitting |
When replacing the fluid tube fitting, these components are often inspected or replaced at the same time to ensure complete fluid system reliability.
Inspect for cracks or brittleness; replace if damaged.
Check sealing surfaces and replace any worn O‑rings.
Clean or replace the screen to prevent debris from entering.
