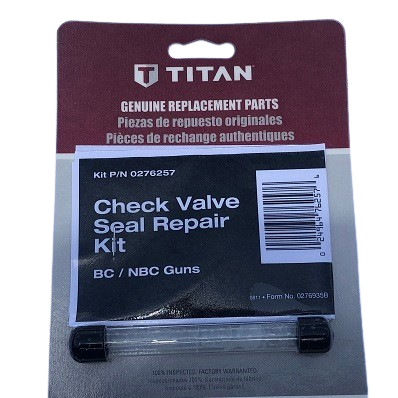

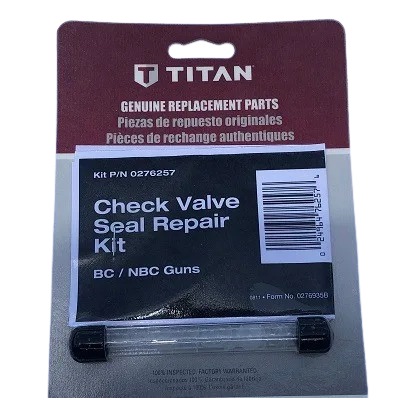

Part number 0276257 is a check valve seal kit. This service kit contains the necessary seals, O-rings, and potentially gaskets required to rebuild or reseal the check valve assembly within a compatible spray gun. It is compatible with the Spraytech HVLP Maxum II. Replacing worn seals restores the valve's ability to prevent material backflow, maintain proper fluid control, and eliminate leaks at the valve body.
| Part Number | 0276257 |
|---|---|
| Part Description | Check Valve Seal Kit |
| Compatible With | Spraytech HVLP Maxum II |
| Condition | New |
Part number 0276257 is a check valve seal kit. This kit includes the various elastomeric seals and O-rings that are critical for the proper sealing and function of the check valve within the spray gun. The check valve is a small but essential component that prevents material from flowing backward into the fluid passages when the gun is not triggered.
This seal kit is compatible with the Spraytech HVLP Maxum II spray gun. Over time, these seals can harden, crack, or wear out, leading to fluid leaks, drips from the air cap, or poor atomization as air mixes with the fluid. Rebuilding the check valve with this kit restores a positive seal and reliable gun performance.
| Prevent Backflow | Seals ensure the check valve closes fully, stopping material from seeping past when idle. |
|---|---|
| Seal Fluid Path | Create airtight/fluid-tight seals between the valve body, seat, and gun housing. |
| Maintain Pressure | Help maintain proper fluid pressure in the gun for consistent atomization. |
| Prevent Air Ingestion | Stop air from being drawn into the fluid stream, which causes spitting. |
| Fluid Leak/Drip | Material drips from the air cap or fluid nozzle when the gun is not triggered. |
|---|---|
| Spitting or Spattering | Gun spits air and material at the start of the trigger pull due to air in the fluid. |
| Poor Atomization | Persistent poor spray pattern not solved by cleaning the tip or needle. |
| Preventive Maintenance | During annual overhaul or when the gun is disassembled for deep cleaning. |
The check valve seal kit part 0276257 is specifically designed for the following spray gun model.
| Compatible Spray Gun Model | Component |
|---|---|
| Spraytech HVLP Maxum II | Check Valve Seal Kit |
When performing a check valve service, these other gun components are often inspected or replaced concurrently.
The complete valve body and ball/seat that the seals are installed on.
The seal around the fluid needle shaft; another common source of leaks.
The tip and needle that control flow; often serviced when the gun is apart.
