SprayTech part 0276245 is a Maxum II #6 Projector Set used to control fluid delivery and atomization on compatible HVLP spray guns. This set includes the matched air cap and fluid nozzle designed for high‑viscosity materials such as heavy latex, block fillers, textured coatings, and industrial adhesives, ensuring a consistent spray pattern and finish quality. Replacing a worn or incorrect projector set restores proper material flow and atomization on SprayTech HVLP Maxum II sprayers.
| Part Number | 0276245 |
|---|---|
| Part Description | Maxum II #6 Projector Set (Air Cap & Fluid Nozzle) |
| Brand | SprayTech |
| Fits | SprayTech HVLP Maxum II Spray Guns |
| Condition | New |

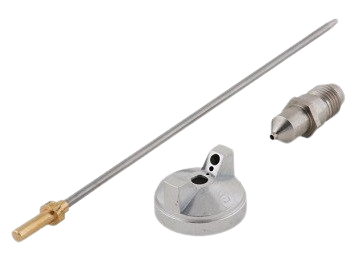

The SprayTech 0276245 Maxum II #6 Projector Set consists of a precision‑matched air cap and fluid nozzle designed for use with SprayTech HVLP Maxum II spray guns. This #6 size features the largest orifice in the Maxum II series, specifically engineered for high‑viscosity materials such as heavy latex paints, block fillers, textured coatings, sound deadeners, and industrial adhesives. It provides the material flow needed for these demanding applications while maintaining optimal atomization and a consistent, controllable fan pattern.
A worn, damaged, or incorrect projector set can lead to poor atomization, orange peel, runs, or an uneven spray pattern. Replacing the set with genuine SprayTech components restores factory performance, ensuring professional‑quality finishes and reliable material delivery even with the heaviest coatings.
| Fluid metering | Precision #6 fluid nozzle controls flow rate for high-viscosity materials |
|---|---|
| Atomization | Air cap shapes and breaks heavy fluids into a fine, even spray |
| Pattern control | Matched components produce a consistent fan pattern for heavy coatings |
| Material compatibility | Designed for the heaviest coatings, including latex, block fillers, and textured materials |
| Worn tip | Enlarged orifice causing excessive material flow or spitting |
|---|---|
| Damaged air cap | Dings or distorted horn holes that affect spray pattern |
| Clogging issues | Repeated blockage despite cleaning, indicating wear |
| Changing material type | Switching to heavier materials may require a #6 tip size |
SprayTech part 0276245 is compatible with the following SprayTech HVLP spray guns. Always confirm fitment using the correct parts diagram for your exact model.
| SprayTech Model | Component |
|---|---|
| SprayTech HVLP Maxum II | #6 Projector Set (air cap & fluid nozzle) |
| SprayTech HVLP Maxum II (all variants) | #6 Projector Set (air cap & fluid nozzle) |
When replacing the projector set, consider inspecting or replacing these associated components to ensure optimal gun performance.
A worn needle can prevent proper seating; replace with matched #6 needle for best results.
A damaged or cross‑threaded ring can cause air leaks and poor atomization.
Includes seals, o‑rings, and filters to keep the gun in top condition.
