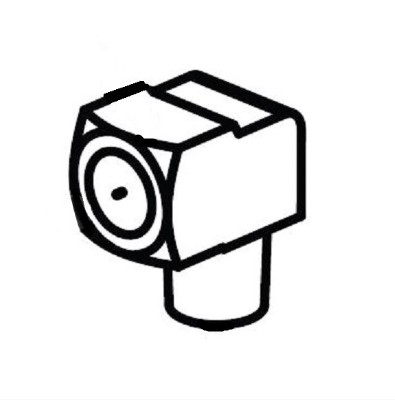

Part number 0275697 is a 90 Elbow Fitting constructed from solid brass. This precision fitting changes the direction of fluid or air flow within compatible spray systems, enabling efficient routing of hoses and tubes in confined spaces while maintaining full flow capacity.
| Part Number | 0275697 |
|---|---|
| Part Description | Fitting,90 Elbow, Brass |
| Fits | SprayTech PowerCast; Spraytech HVLP PowerCast |
| Condition | New |
Part number 0275697 is a 90-degree Elbow Fitting precision-machined from solid brass bar stock. This component redirects fluid or air flow at a right angle, enabling efficient system plumbing in space-constrained applications on compatible SprayTech PowerCast and HVLP PowerCast turbine spray systems. The 90-degree design eliminates the need for sharp hose bends that can restrict flow or cause kinking, maintaining full system pressure and delivery volume.
Brass construction provides exceptional durability and corrosion resistance. Unlike steel, brass will not rust when exposed to moisture or water-based coatings. It offers excellent machinability for precision threads and sealing surfaces, and provides good resistance to many solvents and chemicals. The material also delivers sufficient strength for operating pressures while remaining less prone to galling than stainless steel during assembly.
This fitting is engineered with precision-cut threads that create secure, leak-proof connections with mating components. The threads are manufactured to exact standards for proper engagement and sealing. The elbow configuration maintains full internal diameter through the turn, minimizing pressure drop and ensuring unrestricted flow. This is critical for HVLP turbine systems where air volume and velocity directly impact atomization quality and transfer efficiency.
| Flow Direction | Changes fluid or air path by 90 degrees for efficient system routing |
|---|---|
| Connection Interface | Provides threaded ports for secure attachment of hoses and components |
| Flow Optimization | Maintains full internal diameter through turn to minimize pressure drop |
| Thread Damage | Threads are stripped, crossed, or corroded, preventing proper sealing |
|---|---|
| External Leakage | Fluid or air seeps from fitting body or thread connections |
| Cracking | Fitting body is cracked, particularly at the elbow bend or wrench flats |
| Corrosion | Dezincification or chemical attack has compromised the brass |
Part number 0275697 is specifically designed for the SprayTech PowerCast and Spraytech HVLP PowerCast turbine spray systems. These units utilize precision air fittings throughout the air path from turbine to spray gun. This 90-degree brass elbow is a model-specific component engineered for these particular systems. Always confirm fitment using the correct parts diagram for your exact model and serial number.
| Compatible Models | Component |
|---|---|
| SprayTech PowerCast | Fitting,90 Elbow, Brass |
| Spraytech HVLP PowerCast |
This elbow fitting is part of the air distribution system. When servicing this component, these related parts are often inspected or replaced at the same time.
The flexible hose attached to the fitting should be inspected for cracks, kinks, or damaged ends.
PTFE tape or pipe thread sealant should be reapplied during fitting installation.
The component the elbow threads into should be inspected for thread condition and seal surface damage.
