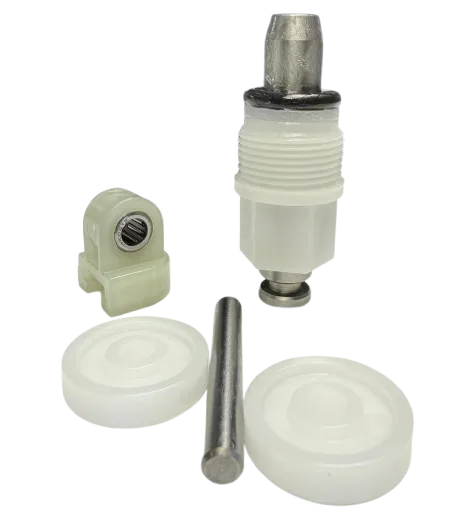

Titan 0580393 Piston/Seal Assembly
Maintain dependable fluid-section performance with the Titan 0580393 Piston/Seal Assembly, a replacement assembly identified for servicing the piston and sealing components of applicable Titan airless spraying equipment. Designed for fluid-section maintenance, this assembly addresses worn or damaged piston/seal components that can affect pressure generation and coating delivery.
Assembly: Piston and sealing components within the applicable pump fluid section.
A practical replacement option when inspection identifies piston wear, sealing deterioration, or fluid-section damage associated with poor pressure retention or inconsistent spraying. Verify the underlying fault before replacing components.
Restore Reliable Pump Pressure with the Titan 0580393 Piston/Seal Assembly
Keep your compatible Titan ControlMax High Efficiency Airless sprayer performing efficiently with the Titan 0580393 Piston/Seal Assembly. This replacement piston repair assembly is designed for servicing worn or damaged internal pump components that affect pressure generation, fluid sealing, and consistent coating delivery. It provides a targeted repair option for compatible ControlMax fluid sections without automatically requiring replacement of the entire sprayer.
How the Titan 0580393 Piston/Seal Assembly Works
The piston is a central working component of a reciprocating airless paint pump. As the piston moves through its operating cycle, the pump draws coating material into the fluid section and delivers pressurized material toward the spray hose and gun.
The associated seals help maintain separation between the pumping chambers and reduce unwanted fluid bypass. When these components become worn, scratched, or damaged, pump efficiency can deteriorate. Replacing the affected piston/seal assembly may restore proper operation when the remaining pump components are serviceable.
When Should You Inspect the Piston/Seal Assembly?
Consider inspecting the pump piston and seals when your compatible Titan sprayer experiences any of the following conditions:
- Difficulty building or maintaining normal spraying pressure.
- Irregular coating delivery or changes in spray pattern consistency.
- Excessive pump cycling when the system should be holding pressure.
- Visible wear, scoring, or deterioration of piston and sealing surfaces.
- Suspected internal fluid bypass after other common causes have been checked.
These symptoms can also result from worn inlet or outlet valves, restricted filters, suction leaks, or other fluid-system problems. Proper diagnosis is important before ordering a replacement assembly.
Titan 0580393 should be selected by exact manufacturer part number and sprayer model, not by piston appearance alone. Supplier fitment references identify several US-market Titan ControlMax and Wagner Control Pro models, but model variations can use different repair components. Check the model identification plate and illustrated pump assembly before purchase. Do not assume compatibility with Wagner Control Pro 130, M-series, or 240V machines.
Installation and Maintenance Guidance
Before servicing the piston/seal assembly, switch off the sprayer, disconnect its power supply, and complete the manufacturer's pressure-relief procedure. Follow the specific service instructions for your Titan ControlMax model.
Inspect the pump cylinder and surrounding components for scratches, contamination, or damage that could affect new seals. Use only the installation tools, lubrication, component orientation, and tightening procedures specified by the manufacturer.
After reassembly, inspect the sprayer for leaks and verify proper operation according to the applicable service manual. Never place hands near a pressurized spray outlet or attempt to inspect high-pressure leaks by touch.
Frequently Asked Questions
Helpful compatibility, repair, and replacement information for Titan 0580393.
What is the Titan 0580393 Piston/Seal Assembly?
It is a replacement piston and sealing assembly for servicing the fluid pump of compatible Titan ControlMax and Wagner Control Pro airless sprayers. It is also referenced as part number 580393.
Which Titan ControlMax sprayers use part 0580393?
Parts suppliers identify US-market ControlMax 1500, 1700, 1700 Pro, 1900, and 1900 Pro sprayers. Confirm the manufacturer's part number in your specific machine's parts diagram before ordering.
Does Titan 0580393 fit Wagner Control Pro sprayers?
Supplier references list compatibility with US-market Wagner Control Pro 150, 170, and 190 models. It should not be assumed to fit the Control Pro 130 or different international and M-series configurations.
What components are included in the 0580393 assembly?
Specialist supplier listings identify a piston, piston seal, piston clip, dowel pin, and piston bushing. Confirm the current manufacturer's package contents before purchase.
Can a worn piston seal cause low spraying pressure?
Yes. A worn or damaged piston seal can allow internal fluid bypass and reduce pump efficiency. However, low pressure may also result from valve wear, suction problems, restricted filters, or other faults.
Does replacing Titan 0580393 guarantee normal spraying pressure?
No. Replacement may correct pressure problems caused by a defective piston/seal assembly, but proper operation also depends on the condition of the pump cylinder, valves, suction system, and other fluid components.
What other components should be inspected during piston replacement?
Inspect the pump cylinder, inlet valve, outlet valve, surrounding seals, and relevant fluid connections. Replace additional parts only when their condition requires service.
How can I confirm that Titan 0580393 is the correct replacement?
Locate your sprayer's exact model designation and consult the corresponding manufacturer parts diagram. Match the piston/seal assembly part number before ordering. Contact the parts supplier if your model or assembly revision is unclear.
