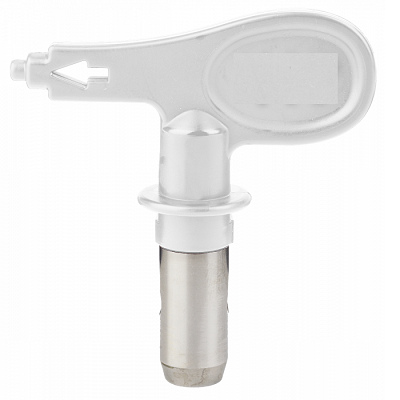

Titan 697-421 TR1 421 Line Striping Tip
TITAN TR1 REVERSIBLE LINE STRIPING TIP
Titan 697-421 TR1 421 Line Striping Tip combines a 4-inch nominal stripe with a .021-inch orifice for heavy-film application with most traffic paints. Its reversible airless design supports professional pavement marking with controlled coating delivery and efficient tip clearing.
Titan classifies 697-421 in the “Most Traffic Paints” group with a heavy-film rating. The .021-inch opening delivers more coating than smaller 4-inch TR1 sizes, making correct paint selection and PowrLiner tip-capacity verification important.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 697-421 is a genuine TR1 reversible airless line-striping tip. Titan specifies a 4-inch / 102 mm nominal line width and .021-inch / .53 mm orifice. Official TR1 charts place this configuration in the “Most Traffic Paints” group and classify it for heavy-film application. |
| Function | The .021-inch orifice meters traffic coating while the tip geometry forms the specified 4-inch nominal pattern. Its larger opening delivers more coating than smaller 4-inch TR1 sizes. The reversible design lets the operator rotate the tip to help clear certain obstructions before returning it to the normal spraying position. |
| Industrial Applications | Suitable for professional parking-lot, pavement, commercial-property, industrial-facility and traffic-marking applications requiring a 4-inch nominal stripe with heavy film. Actual suitability depends on the traffic-paint specification, required dry-film thickness, application speed and capacity of the line-striping machine. |
| Accurate Compatible Titan Machines | Titan publishes 697-421 in official TR1 tip charts for PowrLiner equipment, including PowrLiner 550, PowrLiner 850, PowrLiner 2850 and PowrLiner 3500 documentation. Use on a specific PowrLiner must remain within that machine's maximum tip capacity for the number of guns being operated. |
| Accurate Part Number | Titan 697-421 — TR1 421 Line Striping Tip. Manufacturer documentation verifies a 4-inch / 102 mm nominal pattern and .021-inch / .53 mm orifice. Titan categorizes this exact tip as heavy film within its “Most Traffic Paints” selection group. |
| Compatible Parts & Assemblies | Use with a compatible Titan line-striping spray gun, reversible-tip guard, tip seal, appropriate filtration, high-pressure hose and PowrLiner fluid-delivery system. The installed machine and gun configuration must provide sufficient output for a .021-inch tip while remaining within the equipment's published operating limits. |
| Related Parts Commonly Serviced Together | Inspect the compatible tip guard, tip seal and retainer, spray-gun filter, gun fluid passages, high-pressure hose, machine filtration and gun-positioning hardware when replacing a worn tip. Restrictions, damaged seals or incorrect gun height can affect coating delivery, line width and edge definition. |
| Common Problems Solved | Replacing a worn 697-421 can help restore the intended 4-inch pattern when normal abrasive wear produces poor line edges, pattern deterioration or excessive material delivery. The reversible design also provides a convenient way to clear certain tip obstructions during production without immediately disassembling the spray gun. |
| Use with Coating Systems | Titan places 697-421 in the “Most Traffic Paints” group and specifies heavy-film application. Confirm that the selected traffic coating supports a .021-inch airless tip and follow the coating manufacturer's requirements for pressure, filtration, viscosity, preparation and application conditions. |
| OEM & Brand Information | 697-421 is a genuine Titan Tool TR1 line-striping tip documented in official Titan PowrLiner manuals. The TR1 family provides multiple fan-width and orifice combinations so contractors can select material delivery and line width appropriate for specific professional marking requirements. |
| Commercial Benefits | The 421 combines a common 4-inch professional marking width with the increased material delivery of a .021-inch opening. For compatible traffic coatings and adequately sized PowrLiner equipment, it provides a manufacturer-specified heavy-film option for contractors who need greater coating deposition without moving to a wider stripe. |
Contractor Selection Insight
Choose Titan 697-421 when the project requires a 4-inch nominal stripe with heavy-film application and the traffic coating is approved for a .021-inch airless opening. Both 697-419 and 697-421 carry Titan's heavy-film classification, but the 421 has the larger orifice and therefore greater material-delivery potential. Verify your PowrLiner's maximum tip capacity, especially when operating multiple guns.
FAQ Section
Key answers for contractors selecting Titan 697-421 TR1.
