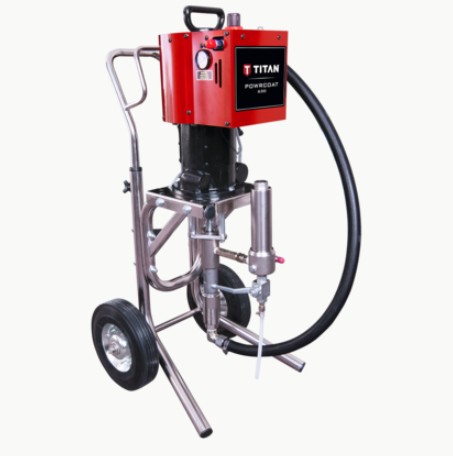

Titan 0533960C Cart Mount
TITAN HIGH-PRESSURE PNEUMATIC AIRLESS SPRAYER
Titan 0533960C PowrCoat 960 Cart Mount, Bare is a professional pneumatic airless sprayer built for demanding protective-coating applications. Its 60:1 pressure ratio, 9-inch air motor, 2.8 GPM maximum recommended output and 6,000 PSI capability deliver powerful industrial spraying performance.
The PowrCoat 960 combines Titan Severe Service pump construction, AirCare air management and a heavy-duty mobile cart. Its higher 60:1 ratio makes it a strong choice when contractors need substantially more atomization pressure than the high-flow PowrCoat 940.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 0533960C is the PowrCoat 960 cart-mounted bare pneumatic airless sprayer. Titan specifies a 60:1 pressure ratio, 9-inch air motor, 4-inch stroke, 2.8 GPM maximum recommended delivery, 6,000 PSI / 413.7 MPa maximum operating pressure and 100 PSI maximum air inlet pressure. |
| Function | Compressed air powers the 9-inch pneumatic motor, which reciprocates the Severe Service fluid section to generate airless coating pressure. The 60:1 ratio prioritizes high fluid pressure for demanding atomization requirements, while the pump provides 114 cc of fluid displacement per cycle and up to 2.8 GPM recommended output. |
| Industrial Applications | Built for professional protective-coating and industrial maintenance environments requiring high-pressure pneumatic airless spraying. Typical applications include structural steel, tanks, industrial equipment, fabrication facilities, corrosion-control projects, marine work, infrastructure maintenance and other compatible high-performance coating operations. |
| Accurate Compatible Titan Machines | 0533960C is a complete PowrCoat 960 cart-mounted bare sprayer, not a replacement component for another machine. Titan 0533960W is the corresponding PowrCoat 960 wall-mount configuration. Related PowrCoat platforms include the 730, 745, 940, 1045, 1064 and 1072, but their pressure ratios, outputs and maximum operating pressures differ. |
| Accurate Part Number | Titan 0533960C — PowrCoat 960 Cart Mount, Bare. Verified specifications include a 60:1 pressure ratio, 6,000 PSI / approximately 414 bar maximum operating pressure, 100 PSI / 6.9 bar maximum air inlet pressure, 2.8 GPM maximum recommended output, 9-inch air motor, 4-inch stroke and 114 cc fluid output per cycle. |
| Compatible Parts & Assemblies | The PowrCoat 960 incorporates a 9-inch pneumatic air motor, Severe Service fluid section, AirCare filter-regulator-lubricator system, automatic-draining moisture trap, high-capacity outlet filter, piston lubrication system and heavy-duty cart. Titan lists 103-808 as the optional 1-inch 55-gallon material suction-feed assembly for the PowrCoat 960. |
| Related Parts Commonly Serviced Together | Common service areas include fluid-section packings, piston rod and cylinder, hardened stainless-steel check balls, tungsten-carbide valve seats, air-motor components, AirCare filter/regulator/lubricator, moisture trap, piston-lubrication system, outlet filter and material suction components. Titan also groups the PowrCoat 745 and 960 together for its applicable fluid-section service program. |
| Common Problems Solved | Provides substantially higher fluid pressure than lower-ratio pneumatic sprayers when demanding coatings require stronger airless atomization. The AirCare system conditions incoming compressed air and is designed to eliminate motor icing, while the high-capacity outlet filter helps reduce tip plugging and Severe Service construction supports extended professional use. |
| Use with Coating Systems | The PowrCoat 960 is designed for demanding protective and industrial coating systems where high airless pressure is required. Material suitability depends on coating chemistry, viscosity, solids content and manufacturer requirements. The compressor, suction assembly, high-pressure hose, spray gun, guard, tip and fittings must all be correctly selected for the coating and operating pressure. |
| OEM & Brand Information | 0533960C is genuine Titan Tool PowrCoat professional pneumatic spraying equipment. Titan's Severe Service pump uses hard-chrome polished piston and cylinder surfaces, hardened stainless-steel check balls, tungsten-carbide valve seats and self-adjusting packings. Titan's AirCare system provides filtration, pressure regulation, lubrication and automatic moisture management. |
| Commercial Benefits | The PowrCoat 960 combines a 60:1 pressure ratio and 6,000 PSI maximum pressure with 2.8 GPM recommended delivery, providing a high-pressure alternative to the higher-flow PowrCoat 940. Its cart configuration adds large 16-inch pneumatic tires, lift handles, a heavy-duty crane hook and high-capacity hose storage for mobile industrial operation. |
Contractor Selection Insight
Choose the PowrCoat 960 when higher atomization pressure is more important than the 4.0 GPM output available from the PowrCoat 940. The 960 delivers a 60:1 ratio, 2.8 GPM recommended output and up to 6,000 PSI, positioning it for demanding protective-coating systems. Titan literature lists up to 148 CFM maximum recommended air volume, so confirm adequate compressor capacity and use spray components rated for the intended operating pressure.
FAQ Section
Key answers for contractors evaluating the Titan PowrCoat 960 cart-mounted sprayer.
