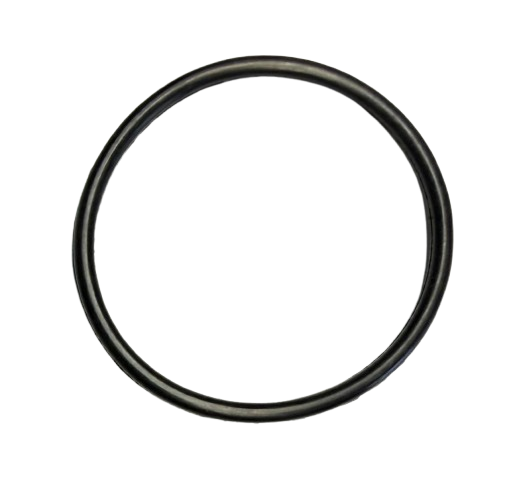

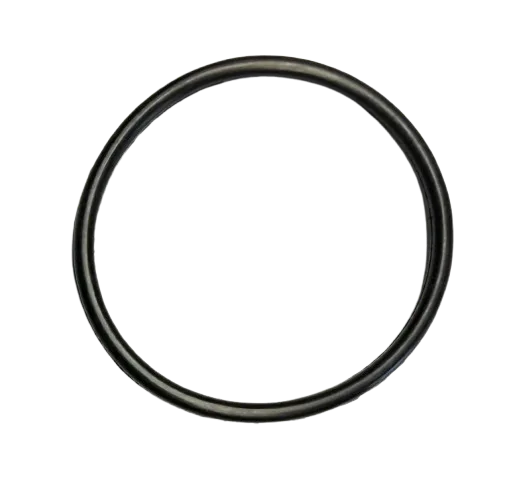

Titan 0529922 Front End Assembly O-Ring

Part number 0529922 is a Front End Assembly O-Ring, a precision-molded elastomeric seal engineered specifically for the HVLP Airspray FlexSpray and FlexSpray HH spray guns. This critical sealing component is installed at the interface between the front end assembly which includes the fluid nozzle, air cap, and retaining ring and the main gun body. When the front end components are properly torqued, this O-Ring compresses to create a positive, leak-proof seal that prevents pressurized material from escaping around the nozzle threads.

This O-Ring serves two essential functions in the spray gun's fluid delivery system. First, it prevents external leakage of material from the front of the gun during operation, eliminating waste, keeping the work area clean, and preventing drips that could ruin a finished surface. Second, it ensures that all fluid delivered by the pump is directed exclusively through the nozzle orifice for proper atomization, maintaining consistent spray pressure and pattern formation.

This O-Ring is a wear item that degrades over time due to multiple factors including chemical attack from solvents and coatings, compression set from prolonged clamping pressure, physical damage during nozzle removal and installation, and thermal cycling. A worn, flattened, cracked, or hardened O-Ring will allow material to seep past the nozzle threads, appearing as fluid weeping from the front of the gun or accumulating around the retaining ring. This leakage can drip onto workpieces, create messy clean-up requirements, and indicate loss of sealing integrity. Replacement of this inexpensive component quickly restores a leak-free seal and prevents material waste.
