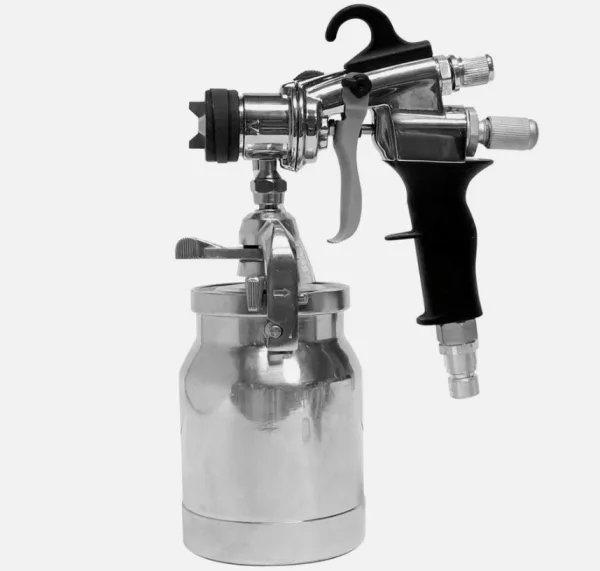

Titan 0524027 HVLP Maxum Elite Spray Gun
TITAN CAPSPRAY MAXUM ELITE HVLP SPRAY GUN
Titan 0524027 Maxum Elite HVLP Spray Gun with 1-Quart Cup gives professional finishers a versatile turbine gun with reversible fluid chamber, stainless-steel fluid passages, indexed controls, multi-position pickup tube, and standard #3 ProSet for controlled fine-finish coating application.
Titan 0524027 is the pressure-fed 1-quart Maxum Elite configuration. Its removable, reversible front-end design supports fast setup changes, while optional Maxum Elite ProSets #2 through #7 let contractors match fluid delivery to coatings ranging from fine-finish materials to higher-output applications.
| Detail | Technical / Commercial Information |
|---|---|
| Product Overview | Titan 0524027 is the Maxum Elite HVLP spray gun configuration supplied with a pressure-fed 1-quart aluminum cup and standard #3 ProSet. Titan designed the Maxum Elite for contractors and finishing professionals who need a versatile turbine HVLP gun capable of working with pressurized standard-cup and gravity-cup configurations. |
| Function | The Maxum Elite uses high-volume, low-pressure turbine air to atomize coating delivered from its pressurized cup. Indexed air and fluid controls allow the operator to tune spray output, while the three-position click-in air cap provides quick selection of horizontal, vertical, and round spray-pattern orientations. |
| Industrial Applications | Built for professional fine finishing on cabinetry, furniture, doors, trim, architectural millwork and similar coated surfaces. When paired with the correct turbine, ProSet and material preparation, the Maxum Elite platform can apply coatings ranging from thin stains and clear finishes through progressively heavier compatible materials. |
| Accurate Compatible Titan Machines | The 0524027 is a complete Maxum Elite turbine HVLP spray gun rather than an airless-gun replacement. Titan documents the Maxum Elite within the CapSpray HVLP system family, and current CapSpray service documentation identifies 0524027 as the Maxum Elite spray gun supplied with CapSpray turbine equipment. Always match turbine capability and coating requirements before selecting a ProSet. |
| Accurate Part Number | Titan 0524027 — Maxum Elite HVLP Spray Gun with pressure-fed 1-quart cup. Do not confuse it with Titan 0524052, the Maxum Elite gravity-gun configuration. Titan identifies 0524045 as the gravity-cup accessory with stand. |
| Compatible Parts & Assemblies | The gun comes standard with Titan #3 ProSet 0524294. Maxum Elite projector options include #2 Fine Finish 0524293, #3 All-Purpose 0524294, #4 High Output 0524295, #5 High Output 0524296, #6 High Output 0524297, and #7 Highest Output 0524298. Titan also offers front-end and gravity-cup accessories for the Maxum Elite platform. |
| Related Parts Commonly Serviced Together | Inspect the ProSet needle and nozzle, air cap, packing and head assembly, integrated check valve, pickup tube, cup assembly, cup gasket, air-control components, fluid control, trigger and HVLP hose connections during routine service. The removable front end allows the needle to remain with its packing and head assembly during color or tip-size changes. |
| Common Problems Solved | The removable and reversible fluid chamber simplifies color and ProSet changes while reducing cleanup between configurations. Its multi-position pickup tube supports spraying at different gun angles, including work on cabinets, floors and ceilings, while the heat-resistant grip helps maintain operator comfort during extended turbine operation. |
| Use with Coating Systems | Titan's Maxum Elite ProSet range allows fluid delivery to be matched to coating characteristics. #2 is designated Fine Finish, #3 All-Purpose, #4 through #6 High Output, and #7 Highest Output. Proper coating viscosity, turbine stage capability and ProSet selection are critical when moving from stains and fine finishes to heavier coatings. |
| OEM & Brand Information | 0524027 is genuine Titan Maxum Elite equipment. Titan specifies stainless-steel fluid passages, a quick-release reversible head, integrated check valve, indexed air and fluid controls, easy-pull two-stage trigger, large internal air passages, heat-resistant ergonomic handle, and the ability to convert between non-bleeder and bleeder operation. |
| Commercial Benefits | The Maxum Elite gives professional finishers one serviceable HVLP platform that can be adapted through multiple ProSets and cup configurations. The supplied 1-quart pressure cup supports production-oriented work, while quick pattern adjustment, replaceable front-end configurations and a broad projector-set range help reduce equipment changes between finishing applications. |
Contractor Selection Insight
Choose Titan 0524027 when you want the Maxum Elite platform with its pressure-fed 1-quart cup and versatile #3 All-Purpose ProSet already installed. For finer materials, #2 ProSet 0524293 is the Fine Finish option; for progressively higher material output, Titan offers #4 through #7 ProSets. If you specifically prefer a top-mounted gravity configuration, compare Titan 0524052 instead.
FAQ Section
Key answers for contractors selecting the Titan 0524027 Maxum Elite.
