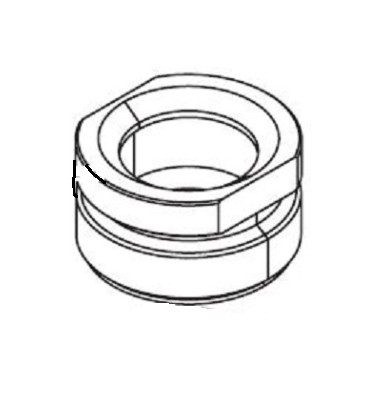

Titan 0138899 Helix Upper Seal Retainer
Replacement component 0138899 is an upper seal retainer used to secure the upper packing assembly within the fluid cylinder on compatible Helix sprayers. When the original retainer becomes damaged or difficult to thread, it can compromise packing compression and lead to fluid leakage. This retainer restores proper sealing pressure and maintains the integrity of the fluid section assembly.
| Part Number | 0138899 |
|---|---|
| Part Description | Upper Seal Retainer |
| Brand | Helix |
| Fits | Helix FR, Helix VR |
| Condition | New |
- Helix FR
- Helix VR
Upper Seal Retainer for Helix FR & VR Fluid Sections
The 0138899 Upper Seal Retainer is a threaded component that screws directly into the top of the fluid cylinder on Helix FR and VR sprayers. Its primary function is to compress and secure the upper packing assembly, creating a positive seal around the piston rod to prevent material leakage and maintain spray pressure.
During fluid section service, the upper seal retainer must be removed using a wrench to access the piston rod and upper packings. A damaged retainer—stripped threads, rounded hex surfaces, or corrosion—can make service difficult and prevent proper packing compression, leading to pressure loss and material bypass.
What it does and when to replace it
| Packing compression | Threads into cylinder to apply precise pressure on upper packing assembly |
|---|---|
| Piston rod guidance | Provides center bore for piston rod to pass through during operation |
| Fluid containment | Works with packings to prevent material from escaping top of cylinder |
| Service access | Removable component that allows replacement of upper packings and piston rod |
| Hex drive damage | Rounded or stripped hex flats prevent proper wrench engagement |
|---|---|
| Thread damage | Cross-threaded or corroded threads that won't seat properly |
| Visible corrosion | Heavy rust or pitting that compromises structural integrity |
| During overhaul | Recommended replacement during complete fluid section rebuild |
Compatibility
The upper seal retainer is used across both Helix FR and Helix VR platform models. Both series share identical fluid section construction and use the same upper seal retainer component.
| Model Series | Component |
|---|---|
| Helix FR (all models) | Upper Seal Retainer |
| Helix VR (all models) | Upper Seal Retainer |
Related parts commonly serviced together
When servicing the upper seal retainer, the fluid section is typically disassembled. These related components are often replaced simultaneously during a complete upper packing service.
Primary seal set compressed by the retainer. Always replace when retainer is removed.
Sits between packing and retainer. Provides even compression distribution.
Inspect for wear or scoring while retainer is removed.
Frequently Asked Questions
Installation: After placing the new upper packing and support ring, thread the upper seal retainer into the cylinder. Tighten securely but avoid over-torquing, which can damage the threads or distort the retainer. Use anti-seize compound if reassembling with existing hardware.
• Fluid leakage from the top of the cylinder around the retainer body
• Difficulty threading during reassembly (cross-threading or galling)
• Rounded hex flats that prevent proper wrench engagement
• Visible corrosion or pitting, especially on the threaded portion
• Piston rod misalignment caused by a deformed or bent retainer bore
• Threads are clean, undamaged, and engage smoothly
• Hex drive surfaces are not rounded
• No corrosion or pitting is present
• The retainer bore is not deformed
However, if you are performing a complete fluid section overhaul and the retainer shows any of the signs listed above, replacement is inexpensive insurance against future disassembly.
